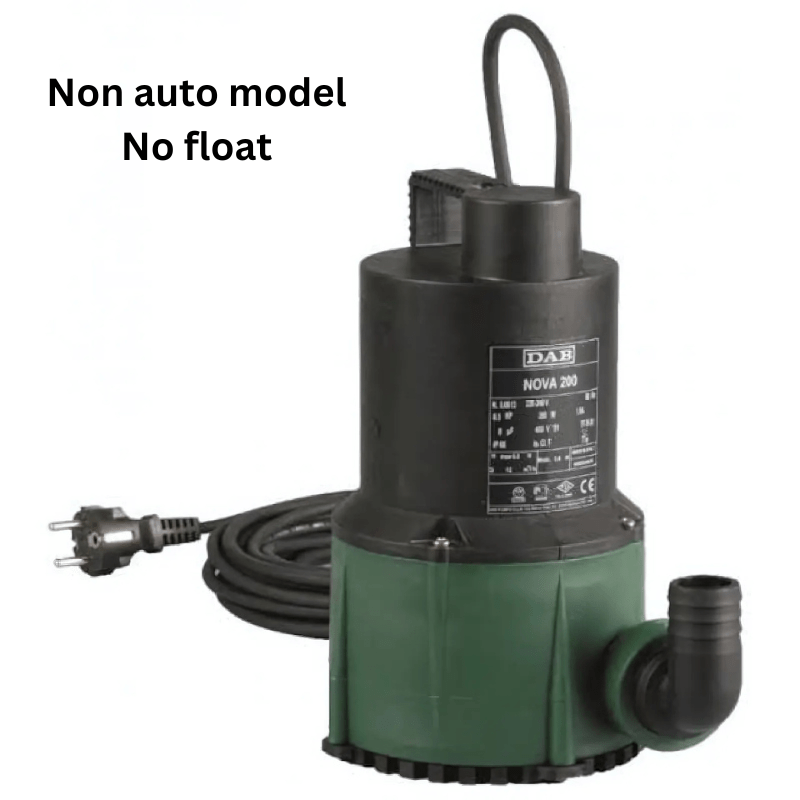

DAB NOVA 200 Submersible Water Pump - 5m Cable, Manual Control (No Float Switch) - Ideal for Drainage, Pond Cleaning & Water Transfer
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:21 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:47997492
Product Description
Nova 200 by DAB are submersible pumps for drainage (also rainwater) in residential building service. The pumps have been redesigned on the occasion of the forty years of marketing, making them even more reliable, resistant and ergonomic to use. They can also be used for emptying tanks or cisterns.
Nova 200 are suitable for fixed or portable installations and they are available in the automatic version with the integrated float switch or in the manual version without the float. The pumps are suitable for drainage of flooded basements, cellars and garages or to prevent flooding when installed in rainwater collector wells, which can also be used as a portable pump in emergency situations to drain water from flooded premises.
The pump body, the impeller and the suction grille are in techno polymer, the motor shaft is in stainless steel. Thermal protection incorporated in all single-phase versions. they can work in dry run for up to a minute. 10 mm free passage. In compliance with the European standard EN 60335-2-41 in case of external use the 10 meter power cable is mandatory.
Submersible pump for water features, drainage of clean water, suitable for domestic applications such as collection from wells, small floods of cellars and in gardening.
Features
- Max water Output: 12000 Liters/Hour
- All components are in rust-proof techno polymer
- Built-in thermal and current overload protection
- Minimum suction height from 7 mm
- Compact dimensions
Advantages
- No rusting over time
- The built-in thermal and current overload protection protects the pump in the event of malfunctions
- Collection possible even with very low water levels
- Compact and rugged construction
Benefits
- Product resistance and durability
- Maximum adaptability to all domestic requirements
- Usable also in very small wells
Capacity of DAB NOVA-200 MNA SV in Liters at Various Heads
| HEAD (mt) | 0 | 1.4 | 2.6 | 3.2 | 4.6 | 5.9 | 6.6 | |
|---|---|---|---|---|---|---|---|---|
| Liters Per Hour | 12000 | 12000 | 9000 | 7500 | 4500 | 2400 | 0 | |
| Manufacturer | DAB PUMPS S.p.A, Italy |
|---|---|
| Country of made | Italy |
| Size | Height – 25.3cm, Bottom width – 14.8cm |
| Weight | 4.8kg |
| Material | Techno polymer |
| Motor protection | IP68 |
| Standard voltage | single-phase 220-240 V/50 Hz |
| Max Kw | 0.35 |
| HP & A | 0.3 & 1.5 |
| Cable length | 5 Mt |
| Max immersion depth | 7 meters |
| Max dry running time | 1 minute |
| Installation | fixed or portable in a vertical position |
